If you’re a Power Query enthusiast you’re probably already comfortable with creating functions and passing values to them. However in some scenarios you don’t want to pass just a single value to a parameter, you want to pass multiple values – for example if you are filtering a table by multiple criteria. What’s the best way of handling this in Power Query?

Imagine that you wanted to import data from the DimDate table in the SQL Server Adventure Works DW database. It’s a pretty straightforward date dimension table as you can see:

Imagine also that you didn’t want to import all the rows from the table but just those for certain days of the week that the user selects (filtering on the EnglishDayNameOfWeek column).

The first problem is, then, how do you allow the user to make this selection in a friendly way? I’ve already blogged about how the function parameter dialog can be made to show ‘allowed’ selections (here and here) but this only allows selection of single values. One solution I’ve used is to create an Excel table – sourced from a Power Query query of course – and then let users select from there.

In this case, the following query can be used to get all the distinct day names:

Nothing much interesting to say about this apart from that it was all created in the UI, it shows the day names in the correct order, and it has an extra column called Selected that always contains the value “No”. The output table in Excel looks like this:

The Selected column is going to allow the end user to choose which days of the week they want to filter the main table by. Since “Yes” and “No” are going to be the only valid values in this column you can use Excel’s Data Validation functionality to show a dropdown box in all of the cells in this column that allows the user from selecting one of those two values and nothing else.

Once the user has selected “Yes” against all of the day names they want to filter by in the Excel table, the next step is to use this table as the source for another Power Query query. To be clear, we’ve used Power Query to load a table containing day names into an Excel table, where the user can select which days they want to filter by, and we then load this data back into Power Query. This second query (called SelectedDays in this example) then just needs to filter the table so it only returns the rows where Selected is “Yes” and then removes the Selected column once it has done that:

This query doesn’t need to be loaded anywhere – but it will be referenced later.

With that done, you need to create a function to filter the DimDate table. Here’s the M code:

The thing to notice here is the condition used in the Table.SelectRows() function, where List.Contains() is used to check whether the day name of the current row is present in the list passed in through the SelectedDays parameter.

The final step is to invoke this function and pass the column from the query containing the selected days to it. There is a bit of UI sugar when you invoke a function with a parameter of type list that I blogged about recently. In this case when you invoke the function you just have to pass the pass it the EnglishDayNameOfWeek column from the SelectedDays query.

Here’s what the code for the query that invokes the function looks like:

And of course, when you run the query and output the results to a table, you get the DimDate table filtered by all of the days of the week you have selected:

To change the output the user just needs to change the selected days and then refresh this last query.

In case you’re wondering, this query does get folded back to SQL Server too. Here’s the SQL generated by Power Query:

Notice that the Where clause contains an IN condition with all of the selected days.

You can download the example workbook for this post here.

One of the great features of Power Query is the way you can view any rows that contain error values when you load data. However, even if you can see the rows that have errors you can’t see the error messages easily – without writing a little bit of M code, which I’ll show you in this post.

Imagine you have the following table of data:

…and you load it into Power Query using the following query, which sets the data type for the Sales column to be Whole Number:

As you’d expect, the last two rows contain error values as a result of this type conversion:

You can also see the number of rows that contain errors when you load the query:

Clicking on the “2 errors” link in the screenshot above creates a new query that only contains the rows with errors:

You can click on the Error link in any cell that contains one to see the error message:

But what you really want is to see the error message for each row. To do this add a new custom column with the following definition:

try [Sales]

You will then see a new column called Custom containing a value of type Record. You can then click the Expand icon in the column header (highlighted) and then OK:

You’ll then see another column called Custom.Error with an Expand icon; click on it and then click OK again.

And at last you’ll have two columns that show the error messages for each row:

In the September 2014 update of Power Query a new piece of functionality was added: the ability to turn on tracing. There’s no documentation about what the trace files actually contain anywhere (it’s clearly intended to be used only by Microsoft to help them diagnose problems) but I couldn’t help but be curious about what’s in there. And of course, when faced with a strange text file to make sense of, I turned to Power Query!

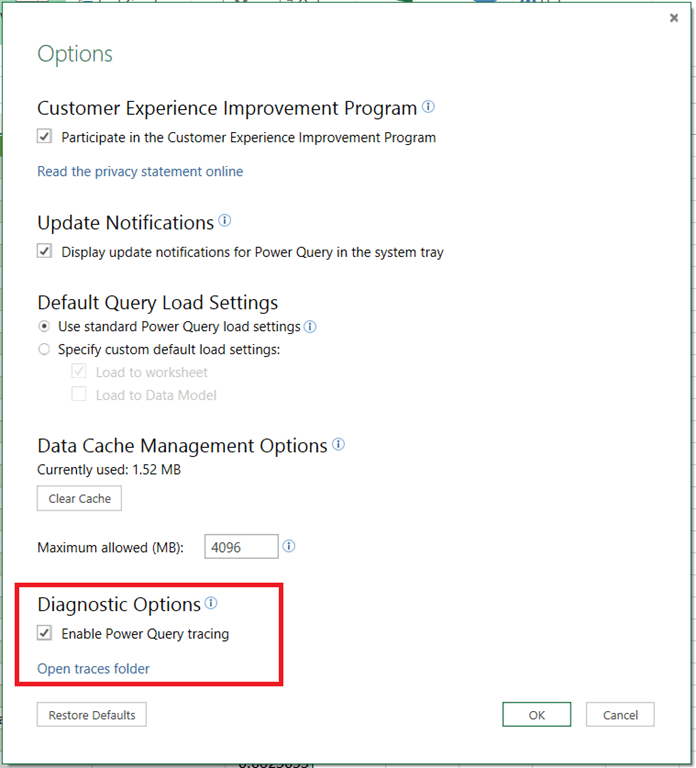

First of all, to turn on tracing, click on the Options button on the Power Query tab in the Excel ribbon, then check the ‘Enable Power Query tracing’ box:

Clicking on the ‘Open traces folder’ link will take you to the directory where the trace files are stored, which in my case is:

C:\Users\Chris\AppData\Local\Microsoft\Power Query\Traces

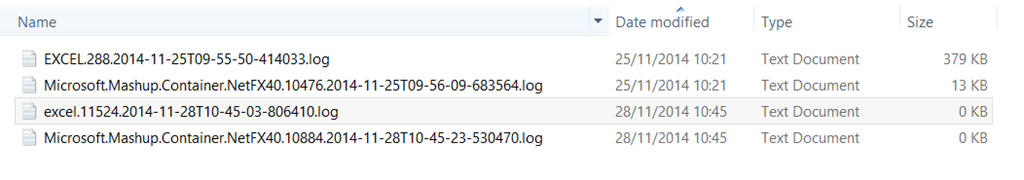

You can then run some queries and you’ll see trace log files appear in that folder:

[This is where the speculation starts]

As far as I can see, every time you run a Power Query query two files are created: one with a filename beginning “excel”, the other with a filename beginning “Microsoft.Mashup.Container”. All of the interesting things I found were in the “Microsoft.Mashup.Container” files so I’ll ignore the second type of file from now on.

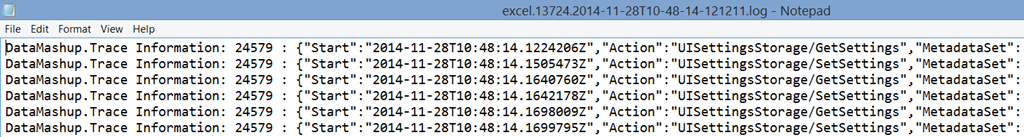

The format of these files is pretty clear from this screenshot:

Each line in the file starts with “DataMashup.Trace.Information”, then there’s a number (which seems to be the same in all cases) and then there’s a JSON fragment. There are two things to point out before you attack this file in Power Query thought:

• The obvious way to get rid of everything before the JSON is to split the column twice using a colon as the delimiter. However if you do this using the default UI settings you’ll find that the JSON is mysteriously broken – all the double quotes have disappeared. This is in fact a side-effect of the way the UI uses the Splitter.SplitTextByEachDelimiter() function: it uses a null in the second parameter, which translates to the default value of QuoteStyle.Csv, but to stop the JSON breaking you need to change this to QuoteStyle.None.
• When you have got rid of everything but the JSON,  you just need to click Parse/JSON and you can explore the data in there:

Here’s an example of a query I generated to read a log file. I don’t want you to think this is a query that will read every log file though: the format may vary depending on the query you run or the version of Power Query you have. I also encountered a few bugs and strange error messages in Power Query while experimenting (I think some were caused by trying to read from files while tracing was turned on, or while the files were open in Notepad) so I can’t guarantee you’ll be able to read the files you’re interested in.

At this point there’s plenty of useful information available: a list of events, a start time for each event, a duration for each event, and other columns where error messages, durations, SQL queries and the number of fields returned by each SQL query. All very useful information when you’re trying to work out why your Power Query query is slow or why it’s not working properly. It’s a shame there isn’t any documentation on what’s in the trace file but as I said, it’s not really for our benefit so I can understand why.

At this point you’re on your own, I’m afraid. Happy exploring!

Here’s something interesting that I just discovered about how Power Query deals with function parameters of type list…

Imagine you have the following table in an Excel worksheet, and a Power Query query called MyTable that loads all of the data from it:

Now, create the following function in a new query:

This is just declares a function that takes a single parameter, Mylist, that is a list and it returns the sum of all of the values in that list.

Now invoke the function from the Workbook Queries pane and instead of seeing the normal Enter Parameters dialog box you’ll see the following:

Clicking on the Choose Column button displays this:

Here you can select another query from your workbook and then select a single column from that query. In this case I’ve chosen column A from the MyTable query. Click OK and all of the values from that column will be passed as a list (using the expression MyTable[A]) through to the new function. Here’s what the resulting query to invoke the function looks like:

The output in this case is, of course, the value 6 – the sum of all of the values in column A:

I’ll use this in a more practical scenario in a future blog post!

In part 1 of this series I showed how you can set properties for Power Query function parameters so that saw a description, an example value and a dropdown list containing allowed values when they invoked the function. In this post I’ll show a slightly more complex use of this functionality: querying a relational database.

Consider the following function. It connects to the DimDate table in the Adventure Works DW sample database for SQL Server, removes all but the Date, Day, Month and Year columns, and allows you to filter the rows in the table by day, month and/or year.

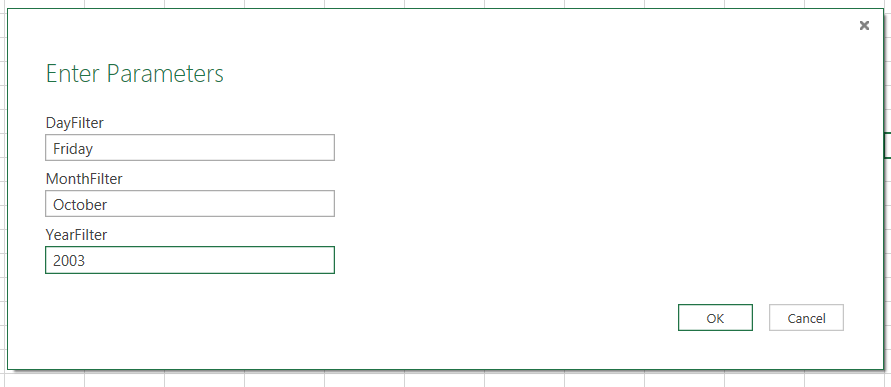

When you invoke the function you can enter the parameter values:

…and you get a filtered table as the output:

The obvious thing to do here is to make these parameters data-driven, so that the user can pick a day, month or year rather than type the text. Using the technique shown in my previous post, here’s how:

It’s a big chunk of code, but not too difficult to follow I hope. The outer let statement has three steps inside it, each of which itself consists of a let statement. The first two steps, GetDimDateTable and BaseFunction, contain more or less the same code as the original function when put together. GetDimDateTable returns the whole DimDate table with the three columns I need; BaseFunction defines the function to filter it. The reason I split the code across two steps is so that, in the third step (AddAllowedValues) I can call the Table.Column() function on the Day, Month and Year columns returned by GetDimDateTable and get lists containing all the distinct values in these three columns. I’m then using these lists when setting AllowedValues in my custom types. The only other thing to point out here, that wasn’t mentioned in my previous post, is that for optional parameters the custom type used needs to be marked as nullable; this means you get the option to not pick anything in the dropdown box that is displayed.

Now, when you invoke this query, you see the dropdown lists populated with all the available values from the appropriate column in the DimDate table in SQL Server:

I also checked to see whether Query Folding takes place for this query, and I was relieved to see it does. Here’s the SQL generated by Power Query for a typical call to the function:

You can download the sample workbook containing the code shown in this post here.
