One Power BI feature that almost passed me by (because it was released in August while I was on holiday) was the ability to create streaming datasets in the Power BI web app and push data to them via the Power BI REST API. This blog post has the announcement:
https://powerbi.microsoft.com/en-us/blog/real-time-in-no-time-with-power-bi/
The documentation is here:
https://powerbi.microsoft.com/en-us/documentation/powerbi-service-real-time-streaming/
And Charles Sterling has an example of how to use it with Flow and PowerApps here:
https://blogs.msdn.microsoft.com/charles_sterling/2016/10/17/how-to-create-and-customize-applications-with-powerapps-with-laura-onu-webinar-1020-10am-pst/

However, when I played around with this I found there were a few things that were either confusing or not properly documented, so I thought it would be useful to give an example of how to use this functionality to automatically synch data from a table in Excel to Power BI using a Power Query query.

Creating the streaming dataset in Power BI

Imagine that you have a table called Sales in an Excel workbook on your desktop:

There are three columns: Month and Product, which contain text values, and Sales, which contains an integer value. This is the data that we want to push up to Power BI.

The first step is to create a streaming dataset in Power BI to receive this data. Go to PowerBI.com and on the left-hand menu, under the Datasets heading, you’ll find a link called Streaming Datasets right at the bottom next to the Get Data button:

Click it and you’ll go to the Streaming data screen. Click on the “Add streaming dataset” button in the top-right to create a new streaming dataset:

Choose the API option in the pop-out pane then click Next:

Then give your dataset a name, enter the names and data types for the columns in the table and leave the Historic data analysis option turned off (we’ll come back to this later):

Hit Create and you’ll see a screen showing the URL to use to push data to the dataset and an example of the JSON to use to send the data:

Copy the URL and put it somewhere handy – you’ll need it in a moment.

Pushing data to the streaming dataset from Excel

Back in your Excel workbook, open the Power Query Query Editor window and create a new text parameter called PowerBIStreamingDatasetURL and paste in the URL for the streaming dataset:

Next, create a new blank query and use the following M code:

This query does the following:

• Reads the data from the Sales table in the workbook
• Converts the data to JSON (for some background on how it does this, see here)
• Sends the data to the streaming dataset using Web.Contents() to make a POST request. See this post on how to make POST requests using Web.Contents() and this post on the technique I’m using to handle HTTP errors manually.
• Returns a table containing a message saying whether the data was updated successfully or not, and the time of execution like so:

Finally, back in Excel, go to the Data tab on the ribbon, click on the Connections button to open the Workbook Connections dialog, select the connection that represents the query you’ve just created, click Properties, then in the Connection Properties dialog tick the “Refresh every” box and set the query to refresh automatically every minute:

Displaying data in a Power BI dashboard

Back in the browser in Power BI, create a new dashboard, click the Add Tile button and choose the Custom Streaming Data option:

Click Next and select the streaming dataset created earlier:

Click Next again and then choose Clustered bar chart as your Visualization Type, select the Month field of the dataset for the Axis, Product for the Legend…

…the Sales field for the Value and set the time window to display to 1 second:

Frustratingly there’s no way to create a measure or otherwise aggregate data here. In this example you’re using all of the fields in dataset in the chart; if you left out Product, however, you wouldn’t see aggregated sales for all products you would just see data for one (the last?) row in the table for each month.

Finally, set a title for the chart:

You now have a dashboard that gets updated automatically and shows the data from the Sales table in the Excel workbook:

When you change the data in Excel, after the Power Query query has run in the background every minute, the new data will appear in the chart.

[Be aware that it might take a few minutes for everything to start working when you first create a new tile]

Other ways of visualising the data

There are other types of data visualisation your can use such as line charts that are all very straightforward. One thing that did confuse me was the card visual: it shows one number, but which number? In this example if you create a card and link it to the Sales field in the dataset, it will always display the value from the last row in the table:

Again, it would be really nice if there was a way of creating a measure here…

The Historic Data Analysis option

You may remember the Historic Data Analysis option from an earlier step. What happens if you turn it on? Basically, instead of storing just one copy of the table you push through the API it stores multiple copies of the table (although it doesn’t store everything – I guess it’s subject to this retention policy or something similar). For example, consider the following variation on the streaming dataset above:

There’s a new field called UpdateDateTime (which is of type text, not datetime, because I found this worked better in reports) and the Historic data analysis switch is turned on.

Here’s an updated version of the Power Query query that populates the UpdateDateTime field with the date and time that the query was run:

You can download a demo workbook with this second example query in here.

The dashboards now work in more or less the same way. The Time Window To Display option that we set to 1 Second above can be used to control the number of copies of the pushed table that are displayed. For example, setting it to five minutes shows data from all of the copies of the table pushed in the last five minutes:

[Incidentally, if you’re using the Power Query query above you’ll see that every time the query runs, the web service is actually called twice! This is a feature of Power Query and M in general – there’s no guarantee that the web service will be called just once even if the query itself is executed once. This is why the dev team always tells people never to use Power Query to update data in a data source (see here for another example of this)]

You now also get a new option to create a report from a streaming dataset on the Streaming Data screen – you need to click the small graph icon next to the name of the streaming dataset:

So now you can create reports that show how the data in your Excel table has changed over time, and slice by the values in the UpdateDateTime field:

It’s important to realise that unlike the dashboards, reports connected to a streaming dataset don’t refresh automatically – you have to click the Refresh button on the report.

Conclusion

Although the examples in this post are perhaps not all that practical, hopefully they show what’s possible with the streaming API and some M code. It would be great if we could do data modelling-type stuff like add measures in the web interface, in the same way that we can in Power BI Desktop, because that would open the door to doing even more cool things with streaming data.

Often, when calling web services from Power BI or Power Query, you’ll need to generate some JSON inside your query to send to these web services. The M language makes this relatively easy to do with the Json.FromValue() function but there’s only one example of how to use it in the help so I though it might be useful to provide some worked examples of M data types and how Json.FromValue() turns them into JSON.

First, here’s a function – that I’ve called GetJson() for the examples here – that takes a parameter of any data type, passes it to Json.FromValue() and returns the JSON representation of the input as text:

(InputData) =>

let

JsonOutput = Json.FromValue(InputData),

OutputText = Text.FromBinary(JsonOutput)

in

OutputText

Now, let’s see what this returns for a variety of different data types.

Tables

Take the following table on an Excel worksheet, called “Sales”:

The following query loads the data from this table and calls the GetJson() function defined above:

let

Source = Excel.CurrentWorkbook(){[Name="Sales"]}[Content],

#"Changed Type" = Table.TransformColumnTypes(

Source,

{{"Month", type text}, {"Sales", Int64.Type}}),

Output = GetJson(#"Changed Type")

in

Output

It returns the following JSON, an array of objects:

[

{"Month":"January","Sales":1},

{"Month":"February","Sales":2},

{"Month":"March","Sales":3}

]

Lists

M language lists are represented as JSON arrays, so the following query:

GetJson({"Apples", "Oranges", "Pears"})

…returns

["Apples","Oranges","Pears"]

And

GetJson({{1,"Apples"}, {2,"Oranges"}, {3,"Pears"}})

…returns

[[1,"Apples"],[2,"Oranges"],[3,"Pears"]]

Records

M language records are represented as JSON objects, so:

GetJson([month="January", product="Apples", sales=1])

…returns

{"month":"January","product":"Apples","sales":1}

Nested Data

Finally, in M it’s possible to have nested data structures: lists of tables, records containing lists and so on. These can be converted to JSON too, so in the following example of a record containing a text value, a list and a table (created using #table):

GetJson(

[

product="Apples",

colours={"Red","Green"},

sales=

#table({"Month", "Sales"},

{

{"January", 1},

{"February", 2}

}

)

]

)

…the JSON output is:

{

"product":"Apples",

"colours":[

"Red",

"Green"

],

"sales":[

{

"Month":"January",

"Sales":1

},

{

"Month":"February",

"Sales":2

}

]

}

You can download the sample Excel 2016 workbook with these examples in here.

The Web.Contents() function in M is the key to getting data from web pages and web services, and has a number of useful – but badly documented – options that make it easier to construct urls for your web service calls.

Consider the following url:

https://data.gov.uk/api/3/action/package_search?q=cows

It is a call to the metadata api (documentation here) for https://data.gov.uk/, the UK government’s open data portal, and returns a JSON document listing all the datasets found for a search on the keyword “cows”. You can make this call using Web.Contents() quite easily like so:

Web.Contents(
 "https://data.gov.uk/api/3/action/package_search?q=cows"
)

However, instead of having one long string for your url (which will probably need to be constructed in a separate step) you can use the RelativePath and Query options with Web.Contents(). They are given in the second parameter of the function and passed through as fields in a record. RelativePath adds some extra text to the base url given in the first parameter for the function, while Query allows you to add query parameters to the url, and is itself a record.

So, taking the example above, if the base url for the api is https://data.gov.uk/api we can use these options like so:

Web.Contents(
 "https://data.gov.uk/api",
 [
  RelativePath="3/action/package_search",
  Query=[q="cows"]
 ]
)

RelativePath is just the string “3/action/package_search” and is added to the base url. There is just one query parameter “q”, the search query, and the search term is “cows”, so Query takes a record with one field: [q=”cows”]. If you want to specify multiple query parameters you just need to add more fields to the Query record; for example:

Web.Contents(
	"https://data.gov.uk/api",
	[
		RelativePath="3/action/package_search",
		Query=
		[
			q="cows",
			rows="20"
		]
	]
)

Generates a call that returns 20 results, rather than the default 10:

https://data.gov.uk/api/3/action/package_search?q=cows&rows=20

Obviously these options make it easier to construct urls and the code is much clearer, but there are also other benefits to using these options which I’ll cover in another blog post soon.

Note: at the time of writing there is a bug that causes the value given in RelativePath to be appended twice when the Web.Page() function is also used. Hopefully this will be fixed soon.

UPDATE January 2021: This blog post has more details on using the Query option:
https://blog.crossjoin.co.uk/2021/01/10/handling-multiple-url-query-parameters-with-the-same-name-using-web-contents-in-power-query-power-bi/

One strange feature of the Web.Contents() function in Power Query and Power BI is that it doesn’t respond in a consistent way to the standard error handling techniques used in M. I don’t know if this is a bug or a feature, but it’s certainly something I’ve run into a few times so I thought I would share a description of the problem and a way of working around it.

First of all, what’s the problem? Imagine that you wanted to import a list of training courses from that fine UK Microsoft BI and SQL Server training company Technitrain into Power Query or Power BI. You could do so using an M query that uses the Web.Contents() function to get the course RSS feed, like so:

let
Source = Web.Contents("http://technitrain.com/feed/")
in
Source

But what happens if you get the URL wrong, or there’s some other problem with the site? For example, the following URL will give a 404 – Not Found error because the page doesn’t exist:

http://technitrain.com/blahblah

If you use it in an M query, like so:

let
Source = Web.Contents("http://technitrain.com/blahblah")
in
Source

Unsurprisingly you get an error:

DataSource.Error: Web.Contents failed to get contents from ‘http://technitrain.com/blahblah’ (404): Not Found

The real issue is, though, when you attempt to handle this error with a try/otherwise statement like so:

let
Source = try
Web.Contents("http://technitrain.com/blahblah")
otherwise
"Error!"
in
Source

…it doesn’t work and you get the same error! What’s strange is that in some cases a try/otherwise block in more complex code will work, so for example in:

let
Source = try
Xml.Tables(
Web.Contents("http://technitrain.com/blahblah")
)
otherwise
"Error!"
in
Source

… the error does get caught:

This thread on the Power Query forum suggests it’s something to do with lazy evaluation, but I haven’t been able to determine the situations when it does work and when it doesn’t.

Instead, it is possible to handle specific HTTP error codes using the ManualStatusHandling option in Web.Contents():

let
Source = Web.Contents(
"http://technitrain.com/blahblah",
[ManualStatusHandling={404}])
in
Source

The ManualStatusHandling option takes a list of numeric HTTP error codes, and if you run the above example you’ll see that the query no longer returns an error.

The next problem is, then, how do you know whether the request worked or not? It turns out that you can find out by looking at the metadata associated with the Source variable (for some background on getting metadata values see this post). So, for example, using Value.Metadata() on the Source variable like so:

let
Source = Web.Contents(
"http://technitrain.com/blahblah",
[ManualStatusHandling={404}]),
GetMetadata = Value.Metadata(Source)
in
GetMetadata

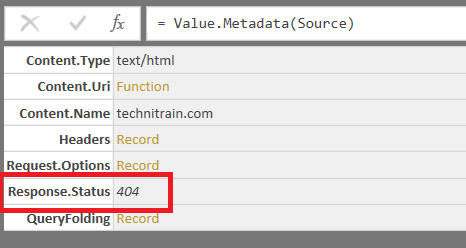

Returns a record which, among other things, contains the HTTP response code:

Therefore you can use something like the following pattern to trap 404 errors:

let
Source = Web.Contents(
"http://technitrain.com/blahblah",
[ManualStatusHandling={404}]),
GetMetadata = Value.Metadata(Source),
GetResponseStatus = GetMetadata[Response.Status],
Output = if GetResponseStatus=404 then "Error!" else Source
in
Output

Following on from my last post on checking whether query folding is taking place in a Power BI/Power Query query, I’ve just stumbled on another way of doing this – by looking at metadata. I blogged about M metadata and Power Query some time ago (you might want to read the post to get some background), but it seems like metadata is used more widely than I thought in M…

Take the following query, as used in my previous blog post:

As shown in that post this query connects to the Adventure Works DW database in SQL Server and gets a few columns plus some filtered rows from the DimDate table, and most importantly query folding takes place for all of these transformations.

It turns out that each of the variables used as steps in the query can have metadata automatically assigned to them, some of which is relevant to query folding, and we can use the Value.Metadata() function to get this metadata. So, taking the previous query, we can add two extra steps:

The GetMetadata step gets the metadata associated with the #”Filtered Rows” step, and that metadata comes back in the form of a record with a single field called QueryFolding. The next step gets the data from that field, which is again in the form of a record:

So we can see quite clearly that this step is being folded and that SQL is being generated in the background. It doesn’t seem to be possible to get the SQL query generated here though.

One last thing to note: while all of this works for SQL Server, when I tested it on an SSAS data source where query folding is also definitely taking place the metadata told me – incorrectly – that there was no query folding happening (I couldn’t see the MDX query generated using the View Native Query menu option either). Maybe this is all still a work in progress?

When the June update for Power BI Desktop was released, I was extremely excited to discover an undocumented new feature that allows you to see when query folding is taking place while loading data in the Query Editor. Devin Knight beat me to blogging about it with an excellent post that I strongly recommend you to read:

https://devinknightsql.com/2016/07/03/power-bi-checking-query-folding-with-view-native-query/

As Devin says, this is very important because it’s the first time that we as developers can check to see whether query folding is taking place within the Power BI Query Editor (I guess this feature will come to Power Query soon, maybe sometime in autumn 2016), and getting query folding working is the key to getting good performance when loading data.

Looking at this more closely, I’ve found that it’s also possible to get the query generated in code as well as just seeing it in a dialog box. For example, consider the following M code that returns a few columns and some filtered rows from the DimDate table in the Adventure Works DW SQL Server database:

You can confirm that query folding is taking place and see the SQL that is being generated for the Filtered Rows step by right-clicking on it in the Applied Steps pane and choosing View Native Query:

If you now add two lines of code to the query you can get the SQL query for the #”Filtered Rows” step as a text value using the Value.ResourceExpression() function, like so:

As far as I can see, the Value.ResourceExpression() function can be used with any expression where query folding is taking place and returns a record which, if you dig deep enough into it contains the SQL query. The record itself seems to contain all the information needed to invoke the new Value.NativeQuery() function which I’ve also been looking at recently – but I won’t be blogging about just yet because I’m told it’s not quite finished.

Why is it useful to get the SQL query as text, rather than just seeing it? Well… I have some ideas, and hopefully some other upcoming blog posts will make things clearer!
