The Diagnostics.ActivityId() M Function

I’ve blogged a few times about the tracing functionality that is built into Power Query/Get&Transform and Power BI (see here and here). The trace files themselves clearly contain a lot of interesting information, but there’s no official documentation about what they contain and the format seems to have changed several times. I guess they are meant for Microsoft internal use but that doesn’t stop us from taking a peek at their contents…

Whenever I’ve looked at the contents of a trace file, one problem I have faced is working out which events relate to the query that I’ve just executed. Today, though, I discovered an M function that can help with this: Diagnostics.ActivityId(). It’s not listed in the online M function reference but here’s the documentation from the function itself:

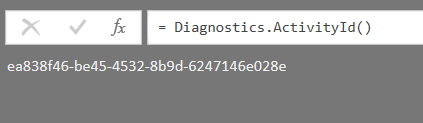

Calling the function does indeed return “an opaque identifier for the currently-running evaluation”. Using the following code in a query:

Diagnostics.ActivityId()

…returns the following:


Every time the query is refreshed a different value is returned.

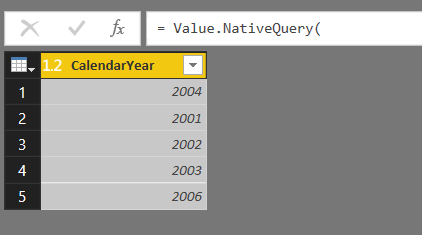

Now, consider the following query that runs a query against a SQL Server database:

let
    Source = Sql.Database("localhost", "Adventure Works DW"),
    Test = Value.NativeQuery(
            Source,
            "SELECT DISTINCT CalendarYear FROM DimDate")
in
    Test


How can you find the trace events that relate to a particular execution of this query? One way is to add a custom column to this query that returns the value returned by Diagnostics.ActivityId():


let
    Source = Sql.Database("localhost", "Adventure Works DW"),
    Test = Value.NativeQuery(
            Source,
            "SELECT DISTINCT CalendarYear FROM DimDate"),
    #"Added Custom" = Table.AddColumn(
	Test,
	"ActivityId",
	each Diagnostics.ActivityId())
in
    #"Added Custom"

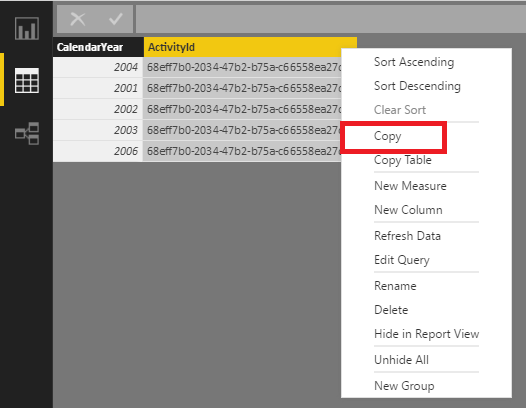

Then, after the query has been loaded into the Data Set you can copy the ActivityID from the table in the Data pane:

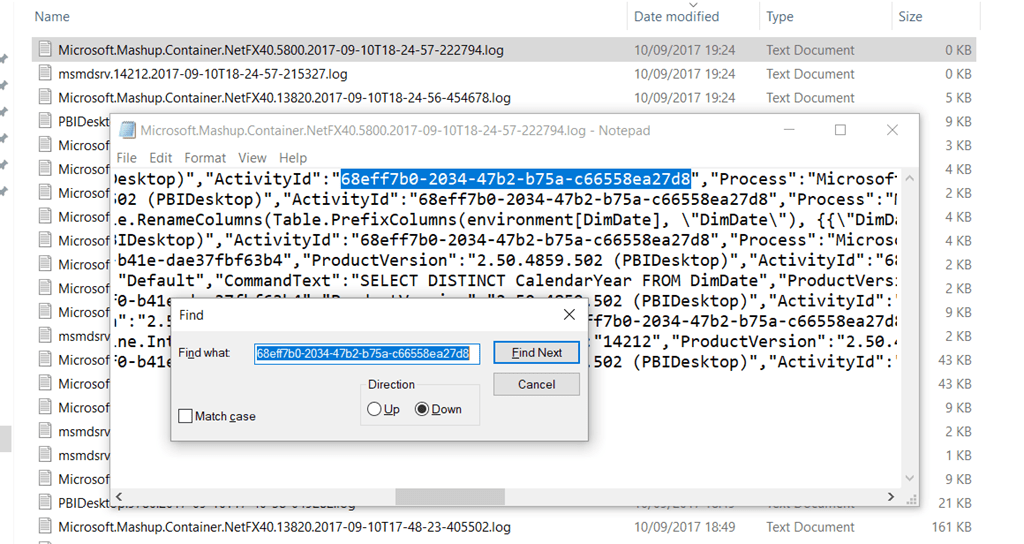

…and then search for the same value in the trace files:


Of course you’re now on your own trying to make sense of what you find in the trace file, but I hope this helps a little bit!
